Product Features:
Type: Engineering Safety Long Beam Insulation Padlock
Brand: Wenzhou Bo Yue
Model: PL76 -KD
Material: insulated lock beam, engineering plastic lock body, zinc alloy cylinder, copper key
Color: red, yellow, blue, green, black and white
Weight: 113G

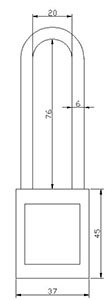

Specifications: lock body (length 38mm wide 20mm high 45mm)
Lock beam (76mm high 76mm thick)

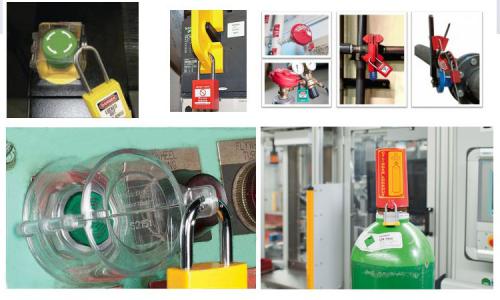

Use: factories, construction sites, hospitals, chemicals, power plants and other industrial sites; designed for the lock / listed design, the use of the most extensive security locks.
QQ：453499317
tel：0577-67393063
【Safety Lock Selection - Engineering Safety Long Beam Insulation Padlock PL76 -KD Introduction】
a. The lock body of this safety lock is made of engineering plastic reinforced nylon PA, which is designed to be more durable and resistant to temperature (-57 ℃ - + 177 ℃). The impact resistance and metal lock beam are treated with chrome plating. Insulated lock beam made of imported DuPont nylon, both to ensure the strength and deformation is not easy to break.
b. Writable labels containing "dangerous" and "owner": English or Chinese and English.
c. anti-UV (UV) and corrosion-resistant, non-silicon.
d. Leave key features to ensure that the padlock will not be opened again to stay in the field.

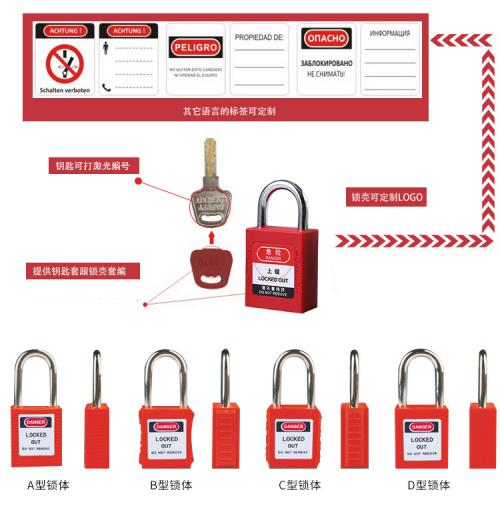

e. Both sides of the lock body and front face can be laser engraved to retain permanent identification or coding.

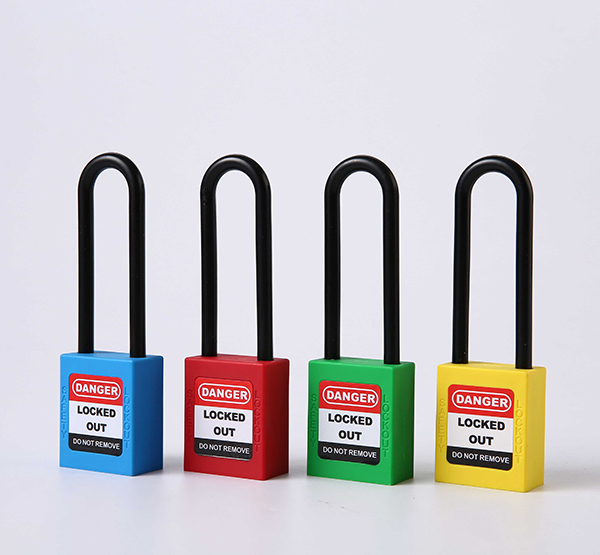

f. lock body has a variety of styles, a variety of colors to choose from.
g. Padlock labels can be customized luminous PVC material.
h. Bo Yue safety supplies designed for the lock / listed design, the use of the most extensive security locks.

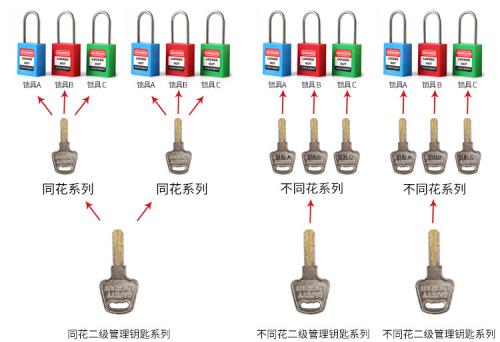

Padlock key system:
1. Different flower series (KD): the key of each padlock is unique, between the lock and the lock can not open each other.
2. Flush series (KA): specify the group lock and lock all can open to each other, any one key can open all the padlock within the group
3. Secondary management key series (MK): the specified group with a padlock with a unique key, lock and lock can not be separated from each other, but there is a secondary management key can open all the padlock within the group.
4. With the flower secondary management key series (KAMK): designated multi-group flush series, groups and groups can not be separated from each other. There is a secondary management key that can open all groups.
5. Three-level management key series (GMK): designated multiple groups of different flowers, groups and groups can not be separated from each other, each group is equipped with a secondary management key. There is also a three-level management key that can open all groups.
specification:
| model | description | size (mm) |
76mmPlastic lock beam, nylon lock shell | A: B: C: | |
S/S76-KDKA-RED | Flush, red color | 6 76 20 |
S/S76-KD-RED | Different flowers, red color | 6 76 20 |
S/S76MK-RED | Master key, red color | 6 76 20 |
S/S76KAMK-RED | Tonghua universal key, red color | 6 76 20 |
A variety of colors to choose from: as long as the product after the color suffix can be added. Such as: RED red, ORJ orange, YLW yellow, GRN green, BLU blue, PRP purple, TEAL blue, BLK black, WHT white and so on. | ||
There are different styles of lock shell optional
 |
